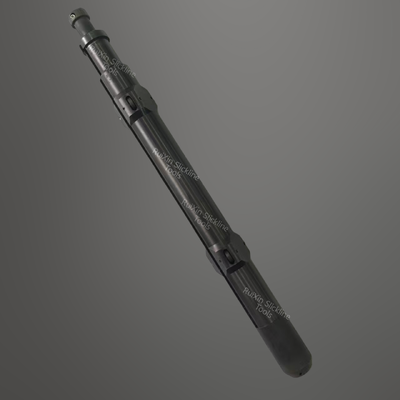

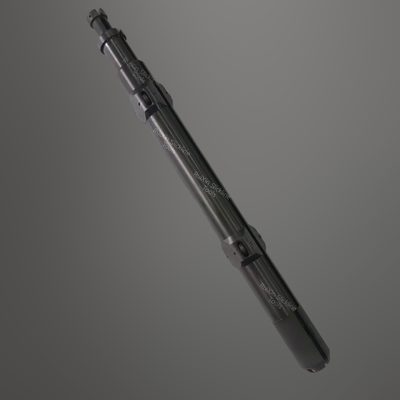

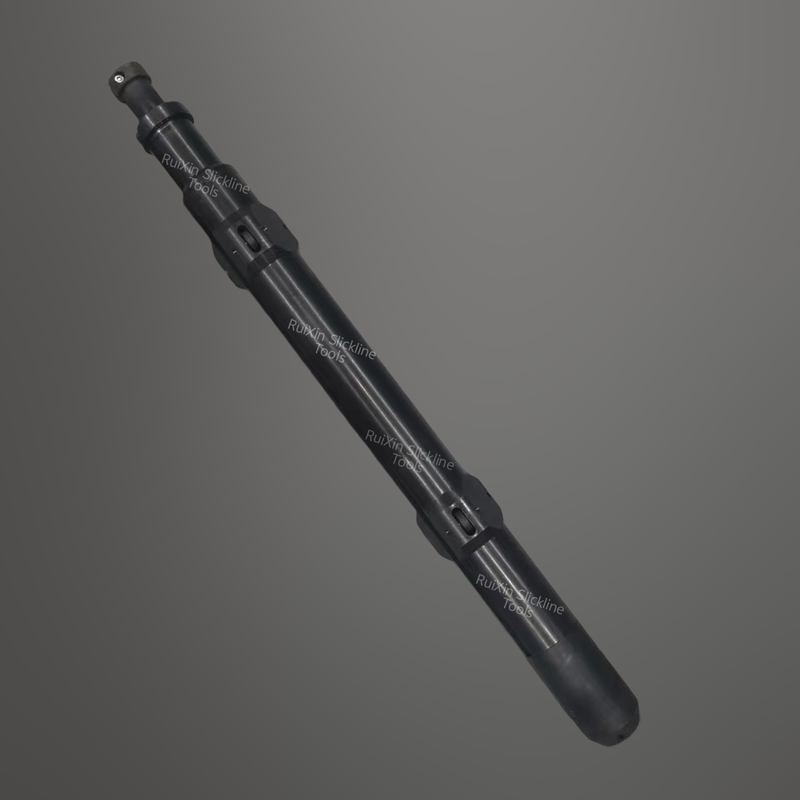

Wireline Rollerised Rotary Cutter Suit 1.5″～1.875″ Fishing Tools

Wireline Rollerised Rotary Cutter Suit  1.5″～1.875″ Fishing Tools

Introduction

 A Rollerised Rotary Cutter is a specialized downhole fishing tool used in oil and gas operations to sever a stuck wireline or slickline. When a toolstring becomes wedged, the cutter is dropped from the surface, sliding down the cable until it impacts the stuck tool, triggering a rotating blade that cleanly cuts the wire.

Application

The Rollerised Rotary Cutter is composed of components such as the connection rod, the body, the impact hammer, the straight sleeve, the conical sleeve, the rotating blade, the fixed blade, the knife holder, the roller and the pin.

Rollerised Rotary cutter is placed over the wireline at the surface and allowed to free-fall or pump down to reach the stuck toolstring. Modern rollerised models feature built-in rollers that help the tool reach target depth in highly deviated or horizontal wells without needing extra roller subs.Once the  Rollerised Rotary Cutter nose strikes the rope socket or stuck tool, the impact shears a pin and utilizes inertia to activate a rotating knife. The blade shears the wire and simultaneously wedges a taper slip or key against the cut wire. This allows the Rollerised Rotary Cutter  and the severed wireline to be retrieved to the surface in a single operation, clearing the way for subsequent fishing operations.

FEATURES & BENEFITS

Suitable for wire sizes

Optimised diameter to prevent Cutter passing toolstring

Premature-cut prevention feature

Linearly supported rotary cutting mechanism

Integral Rollers ideal for use in high angle wells

Minimal connections during assembly over the wireline valve reducing exposure time under the lubricator and around a live well

Simplistic, ergonomic design for rapid redress

Rollerised Go-Devil available to mimic Rollerised Rotary Cutter geometry to improve deployment trajectory

Simple, robust design ensuring ease of operation for the end user

Selected components QPQ treated

Hexagonal flats for safe make-up & break-out.

Any size can be customized according to customer requirements
